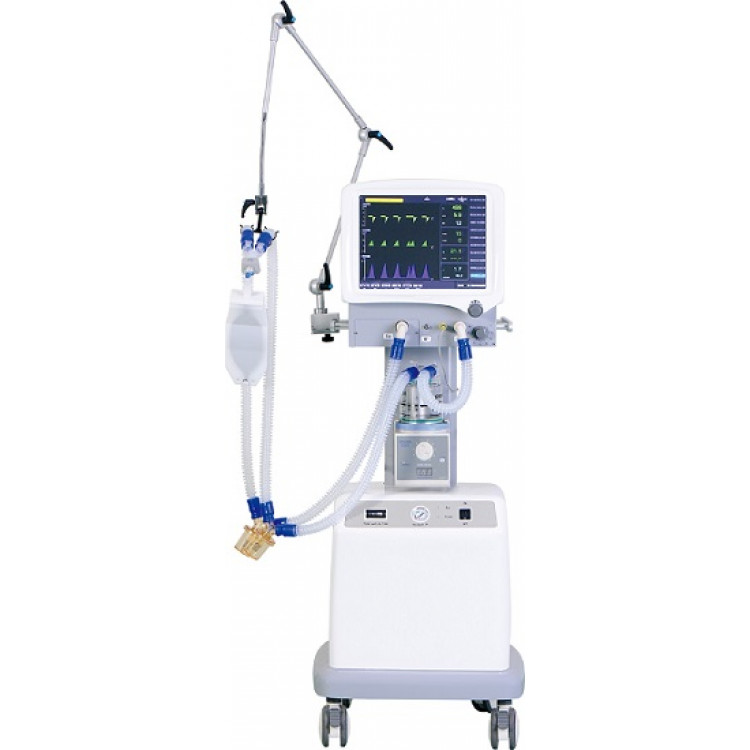

S1200 ICU Ventilator Machine

     0 reviews  |  Write a review
Brand: Superstar
Product Code: S1200





S1200 ICU Ventilator

ADULT · PEDIATRIC

Friendly Powerful Reliable

Application

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.

Features

l 15” TFT LCD touch screen displays the ventilation parameters, alarm information and waveforms.

l Air compressor runs stably with low noise, creates quiet environment for doctors and patients.

l Integration breathing circuit design.

l Multiple working modes such as volume control and pressure limit.

l Multiple parameters monitoring interface to show clear parameter to the operator, allow operator know the patient conditions in all aspects.

l Real time pressure-time, flow-time loop graphics, pressure volume loop graphics and high precision ETCO2, O2 concentration detection function included.

l Electrical PEEP control

l Breathing valve is disassembly and can be disinfected.

Safety

l Three levels alarm system, visual and sound alarm information.

l With multiple type of alarms, reminding and protection functions.

l Self-check before running, eliminate system mulfuction.

l Advanced power management control technology.

l With built-in backup power supply, when normal power supply shut down, back-up power supply will start work automatically.

l Separate design of electric and gas, keep safety running of ventilator.

Specifications

Ventilation modes:

IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV

Ventilator parameter ranges



Tidal volume(Vt)

0 ~ 2000mL

Frequency (Freq)

Oxygen concentration

1bpm ~ 100 bpm

21%-100%

I/E

4:1~1:8

PEEP

0cmH2O ~ 40 cmH2O

Pressure Limit

20 cmH2O ~ 100 cmH2O

Monitored Parameters



Frequency (Freq)

0 /min ~ 100 /min

Tidal volume(Vt)

0 mL ~ 2500 mL

MV

Airway pressure

Dynamic lung compliance testing

ETCO2 Concentration

0 L/min ~ 99 L/min

0 cmH2O ~ 100 cmH2O

1mL/cmH2O ~ 1000mL/cmH2O

0mmHg ~ 152mmHg (0%-20%)

Oxygen concentration

15 % ~ 100 %

Oscillographs display:



P-T(pressure – time)



F-T(flow – time)



P-V loop (pressure – volume loop)



V-T(volume – time )



ETCO2-T (End-tidal CO2 - time)




Alarms and protection



The AC power failure alarm

Power failure or no connection

Internal battery backup low voltage alarm

≤11.3±0.3V

No tidal volume

No tidal volume within 6s

High Minute Volume alarm

Low Minute Volume alarm

5L/min-99L/min

1L/min-30L/min

High Airway pressure alarm

Low Airway pressure alarm

High oxygen concentration alarm

Low oxygen concentration alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

19%-100%

18%-99%

Continuous pressure alarm

(PEEP+1.5cmH2O) over 16s

Suffocation warning

Fan error

Oxygen deficit

                5-60s

Show on screen

Show on screen

The maximum limited pressure

<12.5 kPa



Working conditions



Gas source

O2, AIR

Pressure

280kPa-600kPa

Voltage

220V±22V

Power frequency

50Hz ± 1Hz

Input power

900VA (with air compressor)

250VA (without air compressor)

Ventilation modes:

IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV

Ventilator parameter ranges



Tidal volume(Vt)

0 ~ 2000mL

Frequence (Freq)

Oxygen concentration

1bpm ~ 100 bpm

21%-100%

I/E

4:1~1:8

PEEP

0cmH2O ~ 40 cmH2O

Pressure Limit

20 cmH2O ~ 100 cmH2O

Monitored Parameters



Frequence (Freq)

0 /min ~ 100 /min

Tidal volume(Vt)

0 mL ~ 2500 mL

MV

Airway pressure

Dynamic lung compliance testing

ETCO2 Concentration

0 L/min ~ 99 L/min

0 cmH2O ~ 100 cmH2O

1mL/cmH2O 1000mL/cmH2O

0mmHg  152mmHg (0%-20%)

Oxygen concentration

15 % ~ 100 %

Graphical display:



P-T(pressure – time)



F-T(flow – time)



P-V loop (pressure – volume loop)



V-T(volume – time )



ETCO2-T (End-tidal CO2 - time)




Alarm and protection



The AC power failure alarm

Power failure or no connection

Internal battery backup low voltage alarm

≤11.3±0.3V

No tidal volume

No tidal volume within 6s

High Minute Volume alarm

Low Minute Volume alarm

5L/min-99L/min

1L/min-30L/min

High Airway pressure alarm

Low Airway pressure alarm

High oxygen concentration alarm

Low oxygen concentration alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

19%-100%

18%-99%

Continuous pressure alarm

(PEEP+1.5cmH2O) over 16s

Suffocation warning

Fan error

Oxygen deficit

                5-60s

Show on screen

Show on screen

The maximum limited pressure

<12.5 kPa



Working conditions



Gas source

O2,AIR

Pressure

280kPa-600kPa

Voltage

220V ±22V

Power frequency

50Hz ± 1Hz

Input power

900VA (with air compressor)

250VA (without air compreesor)



Nanjing Superstar Medical Equipment Co., Ltd.

Address: No.6 Building, No.9 Bofu Road, Yanjiang Industrial Development Zone, Liuhe District, 211505 Nanjing, P.R. China
