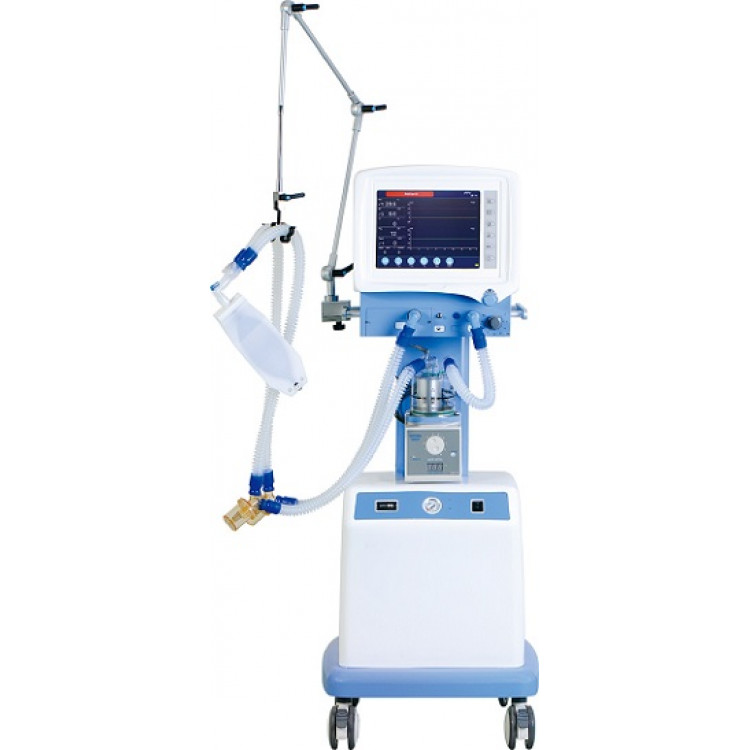

S1100 ICU Ventilator

Friendly Powerful Reliable

Application:

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Intra-operation,  post-operation respiratory support, other respiratory treatment.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 8 modes: IPPV; A/C; PCV; SIMV; SPONT/CPAP;PSV;SIGH;MANU.

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 2,000 units installed in the world.

Features

l 12.1” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l Recycle breathing pipe, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

l Stable and low noise air compressor, create quiet work environment for doctors.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

l Self-check before running, eliminate system mistake.

l Separate design of electric and gas, keep safety running of ventilator.

Specifications

Ventilation modes:

IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV,SIGH,MANU

Ventilator parameter ranges


Tidal volume(Vt)

0 ~ 2000mL

Frequency (Freq)

Oxygen concentration

1bpm ~ 100 bpm

21%-100%

I/E

4:1~1:8

PEEP

0cmH2O ~ 40 cmH2O

Pressure Limit

20 cmH2O ~ 100 cmH2O

Monitored Parameters


Frequency (Freq)

0 /min ~ 100 /min

Tidal volume(Vt)

0 mL ~ 2500 mL

Oxygen concentration

15 % ~ 100 %

Oscillographs display:


P-T(pressure – time)


F-T(flow – time)


P-V loop (pressure – volume loop)


Size

1st Wooden case packing size(main engine):L560*W 560*H 605mm , GW:35KG ; NW:17KG

2nd Wooden case packing size(air compressor):L670*W700*H 1160 mm , GW:79KG ; NW:46.2KG

Alarm and protection

The AC power failure alarm

Power failure or no connection

Internal battery backup low voltage alarm

≤11.3±0.3V

No tidal volume

No tidal volume within 6s

High Minute Volume alarm

LowMinute Volume alarm

5L/min-99L/min

1L/min-30L/min

High Airway pressure alarm

Low Airway pressure alarm

High oxygen concentration alarm

Low oxygen concentration alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

19%-100%

18%-99%

Continuous pressure alarm

(PEEP+1.5cmH2O) over 16s

Suffocation warning

Fan error

Oxygen deficit

5-60s

Show on screen

Show on screen

The maximum limited pressure

<12.5 kPa

Working conditions


Gas source

O2,AIR

Pressure

280kPa-600kPa

Voltage

-220V±22V

Power frequency

50Hz±1Hz

Input power

900VA(with air compressor)

250VA(without air compressor)
