DM-6B Veterinary Anesthesia System

     0 reviews  |  Write a review
Brand: Superstar
Product Code: DM-6B

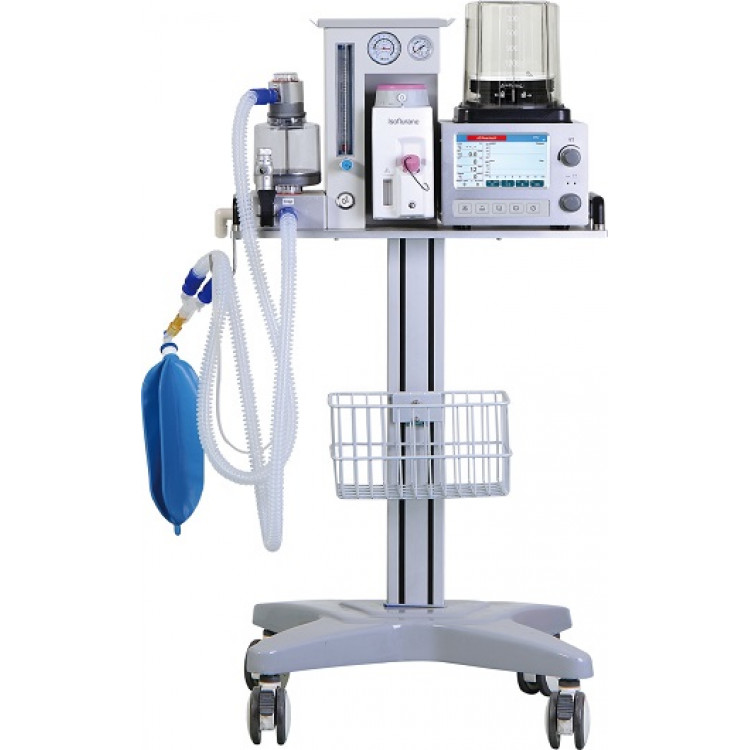

DM-6B Veterinary Anesthesia System

Friendly Powerful Reliable

Application:

The Veterinary Anesthesia machine makes a good performance in animal clinics. From high to low acuity, simple to complex cases, small to big animals, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to different animals and procedures freely

l Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV.

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 2,000 units installed in the world.

Features

l 7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l High precision flow meter, instantly know the fresh gas flow to your patient.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range animal.

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the animal conditions in all aspects;

l Real time pressure-time, flow-time loop graphics included.

l Wide use range including animals within 200KG.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

Specifications

Ventilation modes:

IPPV; A/C; SIMV;

Ventilator parameter ranges


Flow meter

O2(0-5L/min)

Rapid oxygen supply

35L/min-75L/min

Tidal volume(Vt)

0, 20 mL ~ 1500 mL

Frequence(Freq)

1bpm ~ 100 bpm

I/E

2:1~1:6

Pressure triggering sensitivity(PTr)

-20 cmH2O ~ 0 cmH2O(Based on PEEP)

Flow trigger sensitivity (FTr)

0.5 L/min ~ 30 L/min

SIGH

0(off)  1/100 ~ 5/100

Apnea Ventilation

OFF,5 s ~ 60 s

Pressure Limit

20 cmH2O ~ 100 cmH2O

Monitored Parameters


Frequence(Freq)

0 /min ~ 100 /min

Tidal volume(Vt)

0 mL ~ 2000 mL

MV

0 L/min ~ 100 L/min

Graphical display:


P-T(pressure – time)


F-T(flow – time)


Size

1. Wooden case packing size:L 810*W 760*H 520mm , GW:53KG ; NW:30KG

2. Wooden case packing size:L 650*W 690*H 520mm , GW:40KG ; NW:20KG

Alarm and protection

The AC power failure alarm

Power failure or no connection

Internal battery backup low voltage alarm

<11.3±0.3V

No tidal volume

≤5Ml within 6s

High oxygen concentration alarm

Low oxygen concentration alarm

19%-100%

18%-99%

High Airway  pressure alarm

Low Airway  pressure alarm

High Minute Volume alarm

Low Minute Volume alarm

Continuous Pressure alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

Adult(5L/min-20L/min) Paed(1L/min-15L/min

0-10L/min)

(PEEP+1.5kPa) over 16s

Suffocation warning

5s-60s no spontaneous ventilation

The maximum limited pressure

<12.5 kPa

Fan error

Oxygen deficit

Show on screen

Show on screen

Working conditions


Gas source

O2

Pressure

280kPa-600kPa

Voltage

100-240V

Power frequency

50/60Hz

Input power

60VA

Vaporizer


Anesthesia gas

Adjustable scope % (volume percentage)

Halothane

0 ~ 5

Enflurane

0 ~ 5

Isoflurane

0 ~ 5

Sevoflurane

0 ~ 8
